JME Engineered Product · Pakistan

SYNCGEN
SVM-S11

A three-phase multifunction power analyzer developed in China to JME Energy’s requirements for Pakistan’s industrial automation, SCADA and energy-management applications.

Class 0.5S Active EnergyModbus RTU · RS4852nd–63rd Harmonics4 DI · 2 DO
SYNCGEN SVM-S11 three-phase multifunction power and energy analyzer front display
Built for local engineering realities

One analyzer. Complete electrical visibility.

The SYNCGEN SVM-S11 combines accurate metering, power-quality analysis, energy statistics and control-system connectivity in a compact 96 × 96 mm panel instrument. JME provides product distribution, application engineering, panel integration, SCADA mapping and commissioning support across Pakistan.

0.5SActive-energy accuracy referenced to IEC 62053-22
63rdIndividual voltage and current harmonic analysis
30 SOESequence-of-events records for diagnostics
1,000 mMaximum stated RS485 communication distance
Measurement & analysis

Designed for EMS and SCADA integration

  • Voltage, current, frequency, power factor and phase sequence
  • Active, reactive and apparent power by phase and total
  • Import/export active and reactive energy
  • Four-quadrant energy and five-tariff measurement
  • THD and individual harmonics from 2nd to 63rd
  • Voltage/current imbalance, crest factor and current K-factor
  • Demand plus maximum and minimum value records
  • Last 12 months and last 31 days energy statistics
  • Four digital inputs, two relay outputs and alarm functions
  • CT reverse-connection correction and password protection
Networks1P2W, 2P3W, 3P3W, 3P4W
Rated voltage3 × 230 V L-N / 400 V L-L
Measurement range30–350 V L-N / 30–660 V L-L
CT secondary1 A / 5 A standard
Auxiliary supply80–300 VAC / 100–420 VDC
Communications2-wire RS485, Modbus RTU
Baud rate1,200–38,400 bps
Response time<100 ms
Operating temperature−25°C to +55°C
Front display protectionIP51 indoor
Connections & installation

Built for panel and system integration

Clearly identified terminals support auxiliary power, voltage and current measurement, Modbus RS485 communications, digital inputs and relay outputs.

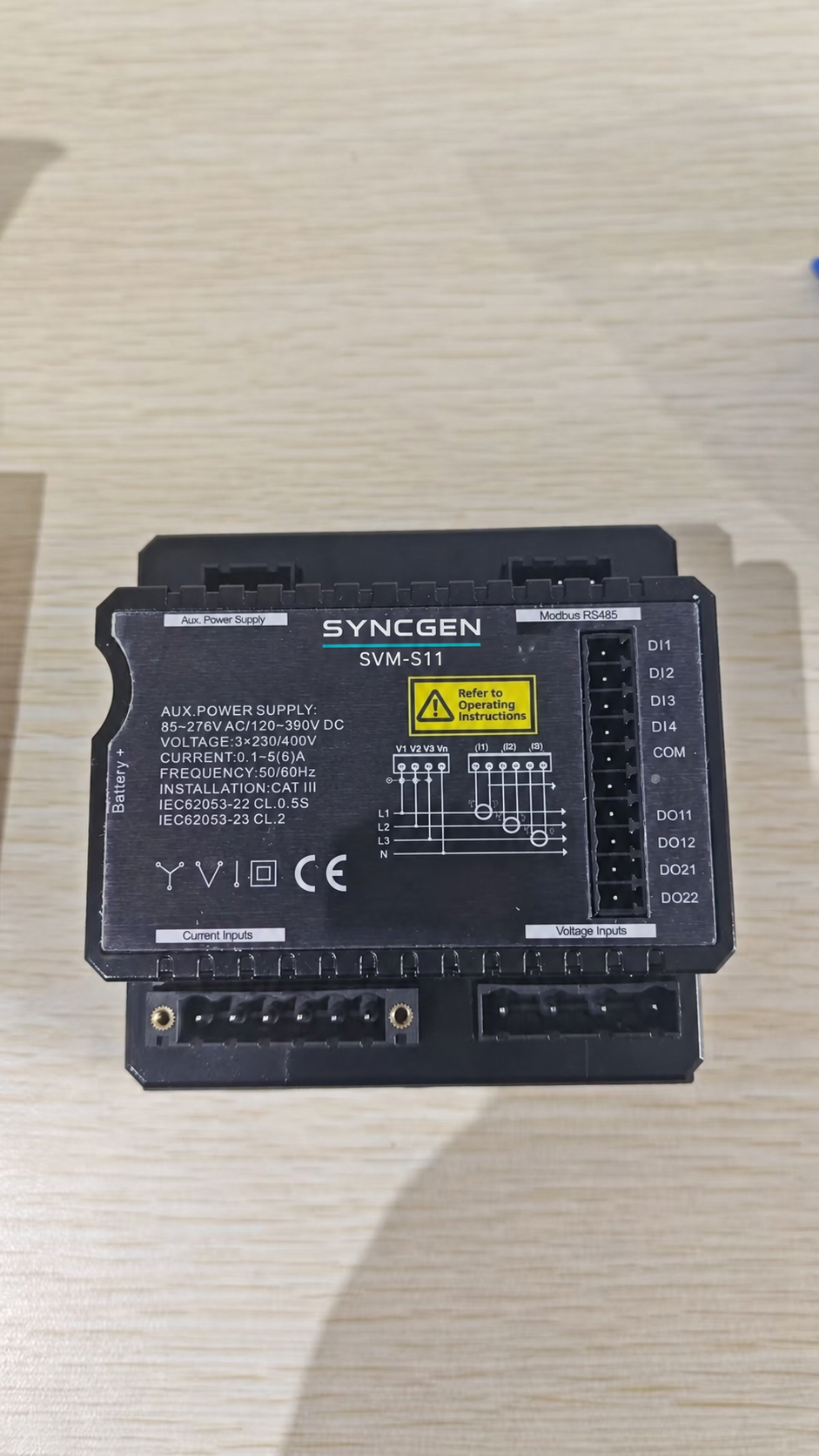

Rear view of SYNCGEN SVM-S11 power analyzer showing Modbus RS485, digital I/O, voltage inputs and current inputs
Rear terminal layout of the SYNCGEN SVM-S11. Final wiring and installation must be completed by qualified personnel using the approved product manual.
Applications

Where the SVM-S11 fits

Industrial EMS

Feeder-level measurement, energy baselining, demand monitoring and consumption reporting.

SCADA Systems

Remote electrical data acquisition through Modbus RTU over a two-wire RS485 network.

Load Management

Digital inputs, relay outputs, alarm thresholds and event records for supervised control.

Power Quality

Harmonics, imbalance, crest factor and K-factor visibility for electrical diagnostics.

Buildings & Utilities

Suitable for intelligent buildings, public facilities, data centres and power systems.

OEM Control Panels

Compact panel mounting with engineering support for wiring, mapping and commissioning.

Energy monitoring architecture

SVM-S11 for Industrial Energy Monitoring Systems in Pakistan

The SVM-S11 can be specified as the electrical measurement layer inside a wider industrial energy-monitoring architecture. JME can integrate analyzer data with EMS, SCADA, dashboards, alarms, trends and reporting where the project interfaces support it.

Utility & transformer feeders

Measure voltage, current, power, energy, demand and power factor at key incoming or distribution points.

Generators, solar, BESS & major loads

Use dedicated analyzers where direct equipment data is unavailable, incomplete or where an independent electrical measurement point is required.

Modbus data acquisition

Feed supported electrical measurements into PLC, EMS or SCADA layers over RS485 / Modbus RTU for centralized visibility.

JME case studies such as Parliament House and Punjab Assembly demonstrate real monitoring and SCADA integration architectures. They are referenced as system-integration evidence and do not imply that SVM-S11 was installed on those projects unless explicitly stated on the case page.

Technical answers

Frequently asked questions

What is the SYNCGEN SVM-S11?

It is a three-phase multifunction power and energy analyzer customized for industrial monitoring, SCADA and energy-management applications in Pakistan.

Can the SVM-S11 connect with SCADA or an EMS?

Yes. It provides two-wire RS485 communications with Modbus RTU as the default protocol and supports baud rates up to 38,400 bps.

Does it measure harmonics and bidirectional energy?

Yes. It measures total harmonic distortion, individual harmonics from the 2nd to 63rd order, and import/export active and reactive energy.

Is product distribution available in Pakistan?

Yes. JME Energy provides SVM-S11 distribution together with selection, integration, Modbus mapping and commissioning support in Pakistan.

Can JME integrate the analyzer into an existing panel?

Yes. Integration is available for new and retrofit electrical panels, centralized monitoring systems, SCADA and industrial EMS deployments.

Final selection and installation must be completed by qualified personnel in accordance with the application, system voltage, CT/PT arrangement and applicable regulations.

Specify the SVM-S11 for your project

Talk to JME about pricing, availability, Modbus integration and panel engineering.
