Ghani Chemicals Hattar — Dual-Utility Solar Export Control
JME Energy & Automation implemented a SYNCGEN-based monitoring and export-control system for a solar installation operating with two utility/WAPDA sources. The solution coordinates plant measurements so unwanted solar export can be controlled against the site’s real operating behaviour.
2 Utility Feeders
Independent visibility of both incoming utility/WAPDA sources and their power flow.
Solar + Load Monitoring
Central overview of solar production, plant demand and grid power flow.

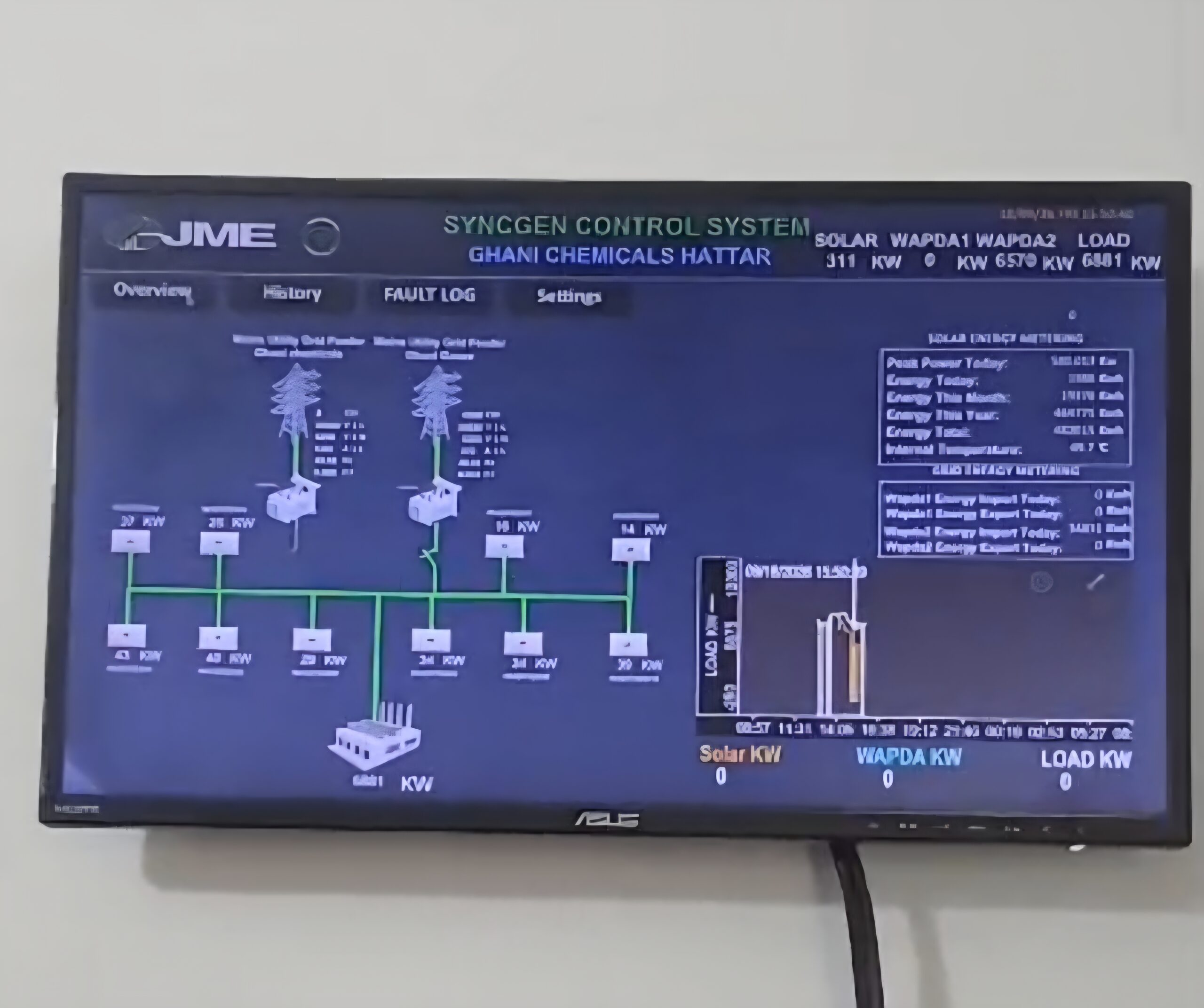

Source & Load Trends
Historical trending helps operators review changing load, solar and utility conditions.
The engineering requirement
With two utility incomers and multiple solar inverter inputs, export control cannot rely on a single static number. The control system must continuously observe the relevant sources and plant load, then respond to changing operating conditions.
JME implementation
Measure → Monitor → Limit Export → Trend → Verify

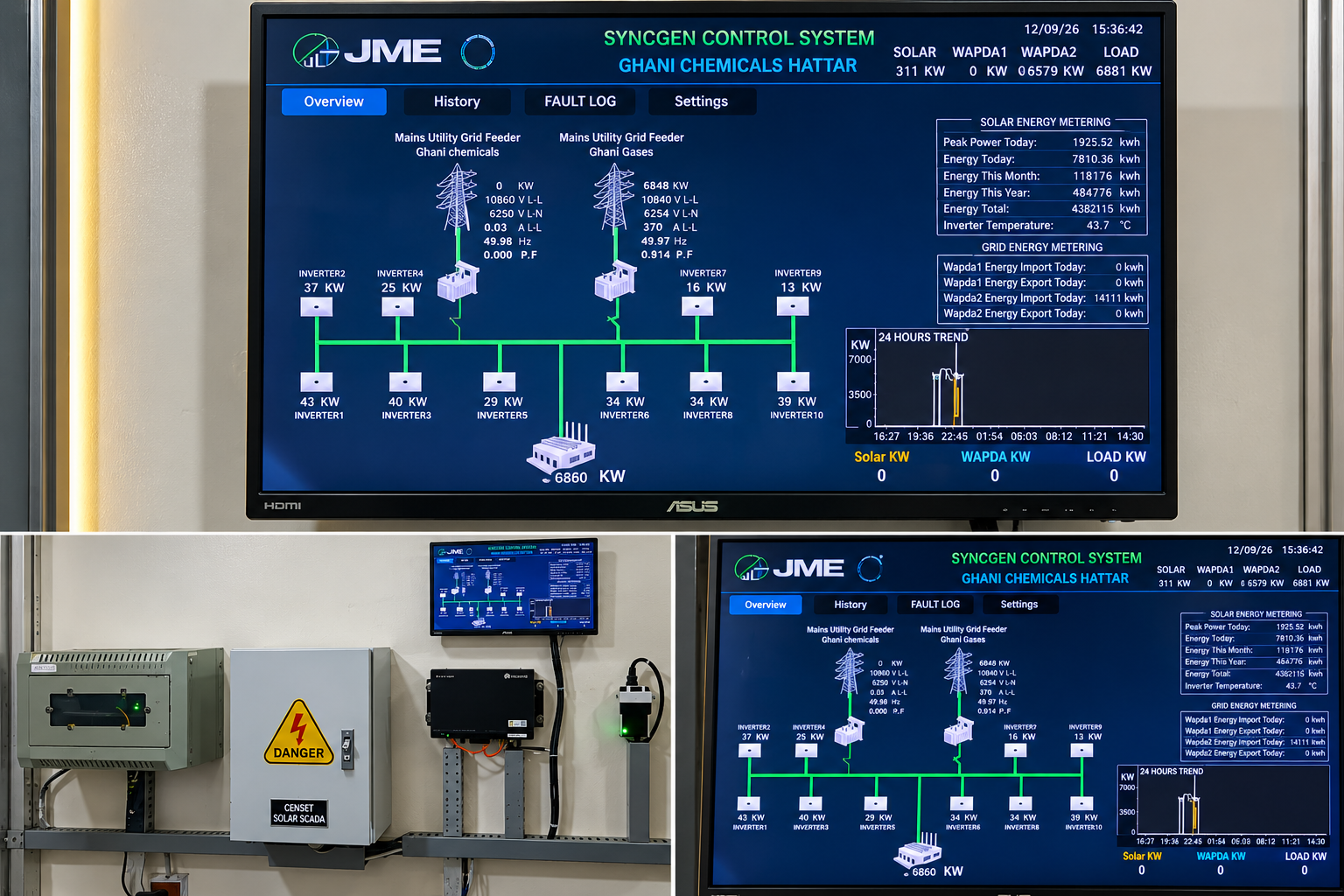

The installed system provides a unified SCADA view of both utility feeders, individual solar inverter contributions, total plant load and energy information. Source and load trends are recorded so the operating response can be reviewed instead of relying only on instantaneous values.
Operational outcome
The project gives the site a centralized view of solar, load and both utility sources while supporting zero-export control across the dual-utility arrangement. Trending provides the engineering evidence needed to verify behaviour over time and support future fine-tuning.
